Fenso 90, 150 Series

Cold Quenching Oils

The Fenso™ product line was developed to provide excellent long life performance in cold quenching operations. FENSO 90 is a premium high speed quench oil. Fenso 90 is formulated with a highly effective accelerator concentrate that is designed to provide long service life with dependable quench speed control, as well as excellent and consistent part cleanliness. FENSO 150 is a high speed cold quench oil that is recommended for carbon and alloy steels, where uniform hardness, good part cleanliness and dimensional stability are required.

Quenching normally refers to the controlled cooling of manufactured steel parts in a fluid to achieve desired metallurgical properties. A steel is quenched to increase it's hardness, strength and wear resistance. The process consists of heating and holding the steel at temperatures above 1200°C to disperse the carbon and alloying elements throughout the iron mass. At this temperature, the steel has an austenitic structure. If the steel is allowed to cool slowly, as in annealing, the structure is transformed to pearlite, a soft ductile mechanical mixture of ferrite and cementite. If the steel is cooled more rapidly, a harder martensitic structure is formed which consists of a solid solution of iron carbide in iron.

Maximum hardness can be imparted to all common tool and machinery steels by cooling them in a controlled and rapid manner from their initial annealing temperature (> 900°C). The hardness that is achieved varies directly with the carbon content and the quenching speed. The steel alloy content has no appreciable effect on the maximum attainable hardness, but higher alloy steels allow for the attainment of maximum hardness at slower cooling rates. The rate of cooling that just causes the steel to harden fully to martensite is known as the "critical cooling rate". A cooling rate slower than this will produce a mixture of martensite and other intermediate transformation products which lower the quality of the quenched steel.

  • Based on IVF Quench test time to 500°C


咨询专家 下载PDS 分享给朋友 查找经销商

Fenso 90, 150 Series提供 2 个润滑油等级。


没有搜索结果 '{{filters.q}}'.

显示了 {{results.length}} 款推荐产品,共 {{totalCount}} 个产品等级


Features and Benefits

Fenso 90 and 150 are made from premium, solvent refined paraffinic basestocks which have high flash points and low volatility characteristics. FENS0 90 and 150 quench oils are fortified with an additive package that provides the rapid quench properties required, while helping to protect the metal parts from the formation of deposits during processing. The oils are non-corrosive to steel parts and can be readily cleaned by spray washing with mild alkali or water.


Features  Advantages and Potential Benefits
Rapid and controlled quench ratesProvides part hardness consistency, thereby reducing waste associated with off-spec parts
Good oxidation stabilityLonger oil life at elevated system temperatures, with fewer oil changes and maintenance outages
Good water separating characteristicsMore consistent and controlled quench speeds



  • FENSO 90 is recommended for use with carbon and alloy steels, including hard to quench aluminum killed steels (steel deoxidized with aluminum).
  • FENSO 150 is recommended for carbon and alloy steels where uniform hardness is required, as well as good parts cleanliness and dimensional stability.


Typical Properties

Colour, ASTM2.0<1.5
Flash Point, °C205200
Kinematic Viscosity, cSt

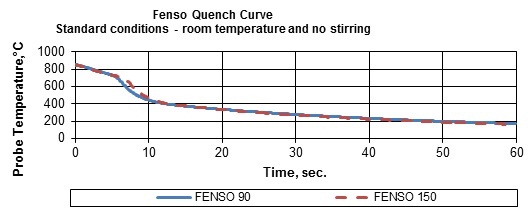

IVF Quench Test
     Max cooling rate °C/min (@°C)95.5 (634)90.0 (637)
     Time to 500°C, sec.9.08.6

The values shown here are representative of current production. Some are controlled by manufacturing specifications, while others are not. All may vary within modest ranges.




Health and Safety

The products described on this data sheet are manufactured from high quality petroleum base stocks, carefully blended with selected additives. As with all petroleum products, good personal hygiene and careful handling should always be practiced. Avoid prolonged contact to skin, splashing into the eyes, ingestion or vapour inhalation. Please refer to the Material Safety Data Sheet for further information.


Note: The products described on this data sheet are NOT controlled under Canadian WHMIS legislation.
